3D Printers

Zortrax Endureal

3D Printers

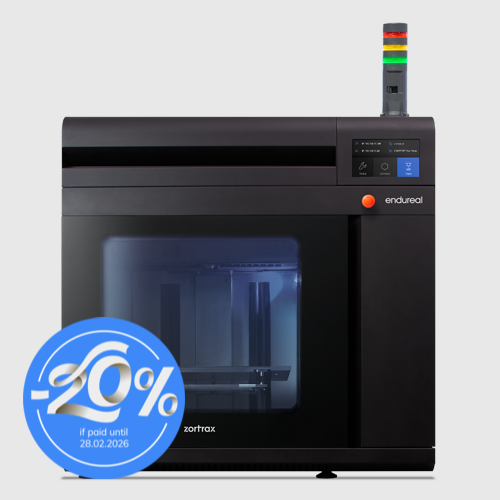

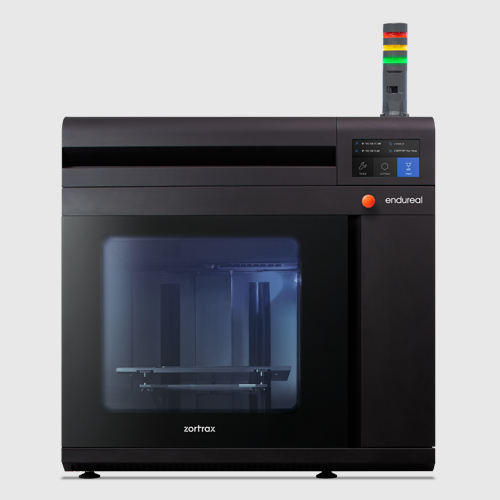

Zortrax Endureal

An industrial dual extrusion 3D printer for high-performance polymers.

Lead time: up to 14 business days

Device features:


  • High-temp polymers processing capability
  • LPD Plus dual extrusion technology
  • Build space measuring 400 x 300 x 300 mm
  • Build platform heated up to 220° C
  • Printing chamber temperature up to 200° C
  • Extrusion temperature up to 480° C
  • Advanced thermal management systems
  • Advanced self-diagnostics with a wide array of sensors
  • 200-250 microns layer resolution with a 0.4 mm nozzle
  • 450 microns minimal wall thickness with 0.4 mm nozzle
  • Easily maintained
  • Compatible with metallic powder filaments
Lead time: 14 business days
27,000.00 USD
Choose plug type*:
Quantity:
Add to Wish List
Shipping weight: 225.00kg

Get your 3rd generation industrial 3D printer

3D print with metal filaments and the strongest polymers on the planet. Request a presentation on Zortrax Endureal.

* Required fields

Thank you for your interest in the Zortrax Endureal 3D printer.



We will be getting in touch with you soon.

An error occured. Please try later.

Description

High-temp polymers processing

Zortrax Endureal is an industrial machine designed for processing of high-temperature polymers* like Z-PEEK, Z-PEI 1010, Z-PEI 9085. Such materials require very high extrusion temperatures but offer excellent mechanical properties comparable to metal alloys. Z-PEI 9085 is an aerospace-grade polymer used to build flame-retardant elements of aircraft interiors. It is one of the few 3D printing materials cleared for use onboard the International Space Station. Z-PEI 9085 can be printed with breakaway support structures in dual extrusion mode.

Three thermal zones

Operating at very high temperatures, the Endureal has three thermally shielded zones. Due to this thermal shielding, the extruder and filament cables are kept in an environment not exceeding 50° C even when the chamber right beneath them is heated up to 200° C. The third thermal zone is the filament chamber where filaments are stored at optimal temperature and humidity.

High user-serviceability

Zortrax Endureal has been designed to be highly user-serviceable. All key components like the extruder, hotend or nozzles can be quickly replaced in-house without voiding the warranty. A maintenance kit that comes with the printer contains all necessary parts and consumables to ensure uninterrupted operation. There is no need to wait for qualified service personnel to intervene in most cases.

Advanced thermal management

Temperatures at each thermal processing stage a polymer has to go through in the Zortrax Endureal can significantly affect the mechanical properties of the printed model. That’s why the temperatures at three crucial points i.e. at the extrusion, and the build platform and in the printing chamber can be precisely defined by the user. This way, the Endureal can be quickly fine-tuned to work with most high-temp polymers on the market as well as experimental or custom-made materials available in small amounts.

Worldwide warranty

Thanks to the global warranty and a network of Zortrax partners running service centers around the world, all users are provided with extensive technical support and assistance for each Zortrax device.

* The unit comes with four high-temperature hotend modules. Two modules are pre-installed in the included extruders, whereas two additional modules are added in the Maintenance Kit. It is required to use a separate high-temperature hotend module with each high-temp material type used for 3D printing.

Specification

DEVICE

Build volume*
400 x 300 x 300 mm (15.7 x 11.8 x 11.8 in)
Nozzle diameter
0.4 mm (0.016 in)
Extruder
Dual material
Extruder cooling system
Two fans cooling the extruder
Radial fan cooling the print
Hotend
High-temperature dual hotend**
Platform
Heated
Material Sensors
2 x mechanical endstop
2 x material weight sensor
Connectivity
Wi-Fi
USB
Ethernet
Operating system
Android
Processor
Quad Core
Touchscreen
7” IPS 1024 x 600
Camera
Yes

FILAMENTS

Dedicated for single extrusion
Z-ABS, Z-ULTRAT, Z-PEI 9085, BASF Ultrafuse® ABS, BASF Ultrafuse® PPSU, BASF Ultrafuse® PC/ABS FR, Nanovia PC-ABS V0
Dedicated for dual extrusion
Z-ABS, Z-PEEK, Z-PEI 1010, Z-PEI 9085, Z-SUPPORT ATP, Z-SUPPORT ATP 130, Z-SUPPORT High-Temp, Z-ULTRAT, BASF Ultrafuse® 17-4 PH, BASF Ultrafuse® 316L, BASF Ultrafuse® Support Layer, , BASF Ultrafuse® ABS, BASF Ultrafuse® PC/ABS FR, VICTREX AM™ 200 FIL, Nanovia PC-ABS V0
External materials
Applicable
Support
Mechanically removed – printed with the same material as the model.
Break-away – printed with a different material than the model.
Soluble – printed with a different material than the model
Filament container
Spool
Filament diameter
1.75 mm (0.069 in)

IN THE BOX

3D Printer, Z-SUITE, Starter Kit, Maintenance Kit, Spool of Model Material, Spool of Support Material, Spool of High-temperature Model Material, Spool of High-temperature Support Material, USB Memory Stick

PRINTING

Technology
LPD Plus (Layer Plastic Deposition Plus) – advanced technology depositing melted thermoplastics with break-away and dissolvable support structures
Layer resolution
200-250 microns (for 0.4 mm nozzle)
Minimal wall thickness
450 microns (for 0.4 mm nozzle)
Platform levelling
Automatic measurement of platform points’ height

TEMPERATURE

Maximum printing temperature (extruder)
480 °C (896 °F)
Maximum platform temperature
220 °C (428 °F)
Maximum build chamber temperature
200 °C (392 °F)
Ambient operation temperature
17-30 °C (63-86 °F)
Storage temperature
0-35 °C (32-95 °F)

ELECTRICAL

AC Input
120V ~ 13 A 50/60 Hz
200 - 240V ~ 9.5 A 50/60 Hz
Maximum power consumption
120 V - 1600 W
200 - 240 V - 2300 W

SOFTWARE

Software Bundle
Z-SUITE
Supported input file types
.stl, obj, .dxf, .3mf, .ply
Supported operating system
Mac OS Catalina and newer versions
Windows 10 and newer versions

MAINTENANCE KIT CONTENTS

Material endstop (2 pcs.), extruder filament gear (2 pcs.), extruder, filters set (carbon & HEPA) (2 pcs.), PEI plate (2 pcs.), high-temperature hotend module (2 pcs.), extruder cable

ADDITIONAL INFORMATIONS

Each delivered printer may have worked up to 150 hours during the quality control test prints.

*In dual-extrusion mode project's dimensions cannot exceed 390 mm (15.35 in) in the X axis and/or 290 mm in the Y axis.
**Remember to use a separate high-temperature hotend module with each high-temperature material type you use.
