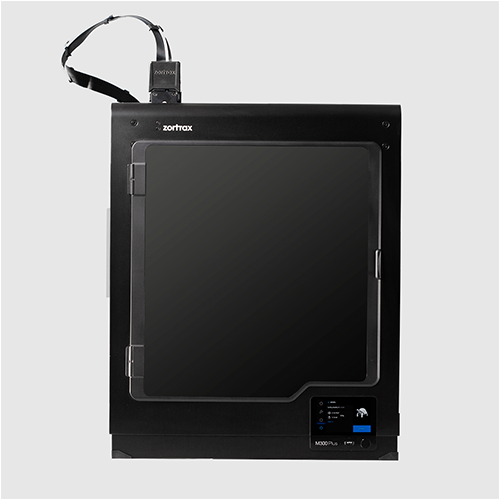

Zortrax M300 Plus

3D Printers

Zortrax M300 Plus

A Wi-Fi 3D printer with one of the biggest build volumes among Plug & Play devices.

Device features:

  • Large build volume (300x300x300 mm)
  • Wi-Fi and Ethernet connectivity
  • 3D printing farms ready
  • Advanced remote management
  • Filament endstop mechanism
  • Built-in camera
  • Intuitive LCD touchscreen
  • Improved axes geometry
  • Upgraded extruder
  • Upgraded cooling system (double fan and extruder cooling)
  • Redesigned hotend (V3)
  • Redesigned nozzle with new geometry
  • Compatible with semi-flexible materials
  • Compatible with Z-ULTRAT
  • Wide range of dedicated filaments
  • External materials are applicable
Availability: In Stock
3,590.00 USD
Shipping, duties and tariffs not included.
Choose plug type*:
Quantity:
Add to Wish List
Delivery: 30 business days
Shipping weight: 55.00kg

Description

Large Volume Desktop 3D Printer with Wi-Fi

A desktop 3D printer with one of the largest workspaces among Plug & Play devices able to 3D print big models in one go. It works in LPD technology, Zortrax's original take on Fused Deposition Modeling (FDM), guaranteeing highest quality results and low maintenance. It can create wireless networks of 3D printers thanks to Wi-Fi and Ethernet connectivity. It’s also equipped with a built-in camera that streams live feed of the 3D printing process via Z-SUITE slicing software, while the material endstop sensor decreases waste and the necessity for operator input. The upgraded extruder, hotend and new nozzle geometry allow Zortrax M300 Plus to 3D print with advanced and flex-type filaments. Side Covers are included.

Dedicated filaments: Z-HIPS, Z-ULTRAT, Z-PETG, Z-GLASS, Z-ESD, Z-PLA Pro, Z-ASA Pro

Specification

Device features

Build volume
300 x 300 x 300 mm (11.8 x 11.8 x 11.8 in)
Material container
Spool
Material diameter
1,75 mm (0.069 in)
Nozzle diameter
0,4 mm (0.016 in)
Support
Mechanically removed - printed with the same material as the model
Extruder
Single (upgraded for more demanding materials)
Extruder cooling system
Radial fan cooling the extruder block
Hotend
Redesigned (v3), new geometry of the nozzle
Platform
Perforated, heated
Material endstop
Mechanical
Connectivity
WI-FI, USB, Ethernet
Operating system
Android
Processor
Quad Core
Touchscreen
4'' IPS 800 x 480
Camera
Yes
Available materials
Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG, Z-ESD, Z-ASA Pro, Z-PLA Pro
External materials
Applicable
In the box
3D printer, Hotend V3, Side Covers, Z-SUITE, Starter Kit, 2 spools of material, Spoolholder

Weight and physical dimensions

3D Printer (W x D x H)
479.5 x 514 x 664.5 mm (18.88 x 20.24 x 26.16 in)
With a spool
479.5 x 575.6 x 664.5 mm (18.88 x 22.66 x 26.16 in)
Shipping box
565 x 570 x 830 mm (22.24 x 22.44 x 32.68 in)
Device weight including the packaging
41 kg (90.4 lb)
Shipping weight
55 kg (121.3 lb)

Printing

Technology
LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform
Layer resolution
90-290 microns
Minimal wall thickness
400 microns
Platform levelling
Automatic measurement of platform points' height
Maximum platform temperature
105 ˚C (221 °F)
Maximum printing temperature (extruder)
290 ˚C (554 °F)
Ambient operation temperature
20 - 30 ˚C (68 - 86 °F)
Storage temperature
0 - 35 ˚C (32 - 95 ˚F)
AC input
110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5A 50/60 Hz
Maximum power consumption
360 W

Software

Software bundle
Z-SUITE
Supported file types
.stl, .obj, .dxf, .3mf
Supported operating systems
Mac OS X / Windows 7 and newer versions

Additional information

Each delivered printer may have worked up to 90 hours during the quality control test prints.
All information contained in this brochure and specification is subject to change without notice.
* The weight includes: the device with the platform, power cable and spool holder installed. It does not include the material spool.
** It should be noted that the model’s dimensions strongly depend on the technical condition of the printer as well as the shape, form and size of a print, the material used and the printing process conditions. The Z-axis accuracy does not include a tolerance of +/- one layer. Bear in mind errors of measurement and measuring equipment.
*** measurements were taken with an angle of 90˚.
