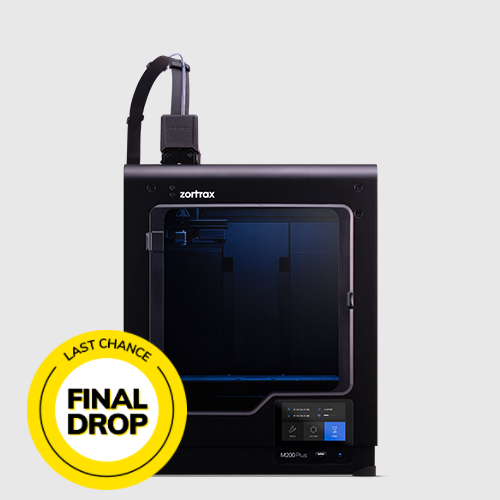

Zortrax M200 Plus

Name: Zortrax M200 Plus
Brand: Zortrax
Price: 2799.00 USS
Availability: InStock

3D Printers

Zortrax M200 Plus

A high-performance desktop 3D printer with Wi-Fi connectivity.

Lead time: 30 business days

Device features:

3D printing farms ready
Wi-Fi, Ethernet and USB connection
Built-in camera
User-friendly design of the touchscreen
Material End Detection
Upgraded extruder (compatible with advanced and semi-flexible filaments)
Upgraded cooling system (double fan and extruder cooling)
Upgraded hotend (V3) and nozzle with new geometry
Perforated plate with pogopins instead of small connector
Wide range of dedicated filaments
External materials are applicable
Optical endstops for the X and Y axes (previously mechanical)
A buzzer (improves device's workflow and reminds users about an important action they need to take)
Blackout Response System

Availability: In Stock

2,799.00 USD

Choose plug type*:

E G B I

Quantity:

Add to Wish List

Shipping weight: 26.00kg

Description

The New High-Performance 3D Printer

An advanced desktop 3D printer for low-volume production and large scale additive manufacturing. Based on the globally acclaimed Zortrax M200 printer, this model retains its high performance, remarkable accuracy and consistency, while adding wireless connectivity using Z-SUITE slicing software. It’s also equipped with a built-in camera to manage the printing progress and a user-friendly touchscreen interface and at the same time adds wireless connectivity that helps monitor the printer via Z-SUITE slicing software. Side Covers are included.

Dedicated filaments: Z-ABS, Z-HIPS, Z-ULTRAT, Z-PETG, Z-GLASS, Z-ESD, Z-PLA Pro, Z-ASA Pro, Z-PCABS, Z-FLEX

Specification

Device features

Build volume

200 x 200 x 180 mm (7.9 x 7.9 x 7.1 in)

Material container

Spool

Material diameter

1,75 mm (0.069 in)

Nozzle diameter

0,4 mm (0.016 in)

Support

Mechanically removed - printed with the same material as the model

Extruder

Single (upgraded for more demanding materials)

Extruder cooling system

Radial fan cooling the extruder block

Hotend

Redesigned (v3), new geometry of the nozzle

Material endstop

Mechanical

Platform

Perforated, heated, equipped with Pogo pins

Connectivity

WI-FI, USB, Ethernet,

Operating system

Android

Processor

Quad Core

Touchscreen

4'' IPS 800 x 480

Camera

Yes, 640 x 480

Available materials

Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG, Z-ESD, Z-PCABS, Z-ABS, Z-ASA Pro, Z-PLA Pro

External materials

Applicable

In the box

3D printer, spool of material, side covers, USB flash drive, build platform, heatbed cable, power cable, spool holder, material guide, quick start guide, Z-SUITE 2 software, starter kit

Weight and physical dimensions

3D printer (W x D x H)

350 x 360 x 505 mm (13.8 x 14.2 x 19.9 in)

With a spool

350 x 430 x 505 mm (13.8 x 16.9 x 19.9 in)

Shipping box

470 x 480 x 570 mm (18.5 x 18.9 x 22.4 in)

Shipping weight

26 kg (57.3 lb)

Printer weight*

16 kg (35 lb)

Printing

Technology

LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform

Layer resolution

90-390 microns

Minimal optimal wall thickness

800 microns

Minimal wall thickness

400 microns

Dimensional accuracy

+/- 0.2%**

Angle accuracy

+/- 0.2%***

X/Y positioning accuracy

1.5 micron

Z-axis single step

1.25 micron

Platform levelling

Automatic measurement of platform points' height

Maximum platform temperature

105 ˚C (221 °F)

Maximum printing temperature (extruder)

290 ˚C (554 °F)

Ambient operation temperature

20 - 30 ˚C (68 - 86 °F)

Storage temperature

0 - 35 ˚C (32 - 95 ˚F)

AC input

110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5A 50/60 Hz

Power supply parameters

24 V DC @ 14 A, 500 W

Maximum power consumption

320 W

Software

Software bundle

Z-SUITE 2

Supported file types

.stl, .obj, .dxf, .3mf

Supported operating systems

Mac OS X / Windows 7 and newer versions

Additional information

Each delivered printer may have worked up to 50 hours during the quality control test prints.

* The weight includes: the device with the platform, power cable and spool holder installed. It does not include the material spool.
** It should be noted that the model’s dimensions strongly depend on the technical condition of the printer as well as the shape, form and size of a print, the material used and the printing process conditions. The Z-axis accuracy does not include a tolerance of +/- one layer. Bear in mind errors of measurement and measuring equipment.
*** measurements were taken with an angle of 90˚.
