Zortrax M300 Dual & DSS

3D Printers

Zortrax M300 Dual & DSS

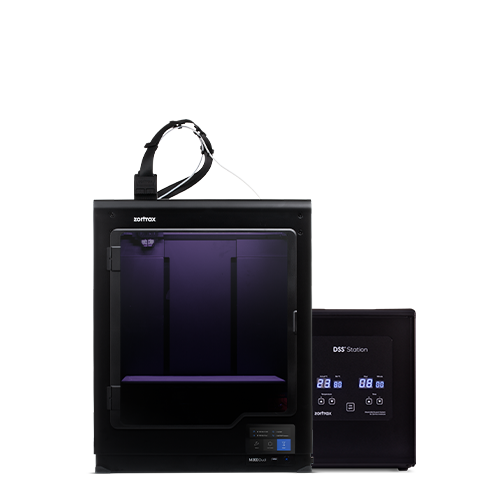

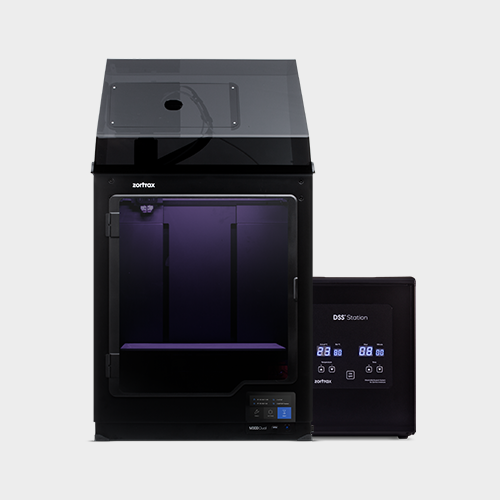

Zortrax M300 Dual 3D printer + DSS Station Bundle
This bundle includes Zortrax M300 Dual 3D printer with a pair of spool holders and DSS Station.
Lead time: 60 days

Zortrax M300 Dual features:

  • LPD Plus dual-extrusion technology
  • 265 x 265 x 300 mm workspace
    • Wi-Fi, USB and Ethernet connectivity
    • Blackout response system
    • Built-in video streaming camera
    • Capacitive displacement sensor
    • Cooling system
    • Filament endstop mechanism
    • Single and dual extrusion modes
    • External materials support


    Zortrax DSS features:
    • Removes water-soluble support structures
    • Easy to set up
    • Works with all PVA water-soluble filaments

    Availability: In Stock
    5,405.50 USD
    Choose plug type*:
    Quantity:
    Add to Wish List
    Shipping weight: 65.00kg

    Description

    Large-volume dual-extrusion
    Zortrax M300 Dual relies on the dual-extrusion LPD Plus technology to simultaneously print with base and water-soluble support filaments in a large build volume measuring 265x265x300 mm.

    Fail-safe 3D printing
    The M300 Dual can detect a power outage, jammed filament, and material running out. In each case it pauses the print and saves the exact position of the printing head. This way your work can be resumed from the same spot when the problem has been dealt with.

    Interchangeable build-platforms
    With a capacitive displacement sensor the M300 Dual can automatically calibrate to work with glass, perforated, or other types of build platforms. This way it’s possible to customize the printer for the project at hand.



    Zortrax DSS Station for PVA Soluble Support Removal
    Zortrax DSS Station is a device for water-soluble support removal. It's easy to use. Just set it up, fill it with water, put the model in, and take it out nearly support-free after a few hours. Designed to work with Z-SUPPORT Premium material, Zortrax DSS Station is also compatible with all PVA water-soluble filaments available on the market*.


    *Some PVA-based filaments may contain components which are not soluble in water. If this is the case, some of the support material may remain on the model and need to be removed with a brush included in the Zortrax DSS Station tool set.


    Specification

    3D PRINTER

    DEVICE

    Build volume
    265 x 265 x 300 mm (10.4 x 10.4 x 11.8 in)
    Nozzle diameter
    0.4 mm (0.016 in) - standard, 0.6 mm (0.024 in)
    Extruder
    Dual, printing with model and support material
    Extruder cooling system
    Two fans cooling the extruder
    Hotend
    Dual
    Platform
    Heated
    Material Endstop
    2 x mechanical
    Connectivity
    Wi-Fi, Ethernet, USB
    Operating system
    Android
    Processor
    Quad Core
    Touchscreen
    4” IPS 800 x 480
    Camera
    Yes

    PRINTING

    Technology
    LPD Plus (Layer Plastic Deposition Plus) – advanced technology depositing melted thermoplastics with dissolvable support structures
    Layer resolution
    150-300 microns (for 0.4 mm / 0.016 in nozzle) 300-500 microns (for 0.6 mm / 0.024 in nozzle)
    Minimal wall thickness
    450 microns (for 0.4 mm / 0.016 in nozzle)
    Platform levelling
    Automatic measurement of platform points’ height / manual measurement of platform points’ height

    FILAMENTS

    Dedicated for single extrusion
    Z-ABS, Z-ASA Pro, Z-ESD, Z-FLEX, Z-GLASS, Z-HIPS, Z-NYLON, Z-PETG, Z-PLA, Z-PLA Pro, Z-ULTRAT, Z-ULTRAT Plus
    Dedicated for dual extrusio
    Z-ABS, Z-ASA Pro, Z-ESD, Z-GLASS, Z-NYLON, Z-PETG, Z-PLA, Z-PLA Pro, Z-SUPPORT ATP, Z-SUPPORT Premium, Z-ULTRAT, Z-ULTRAT Plus
    External materials
    Applicable
    Support
    Mechanically removed – printed with the same material as the model. Soluble – printed with a different material than the model
    Filament container
    Spool
    Filament diameter
    1.75 mm (0.069 in)

    TEMPERATURE

    Maximum printing temperature (extruder)
    310 °C (590 °F)
    Maximum platform temperature
    105 °C (221 °F)
    Ambient operation temperature
    20-30 °C (68-86 °F)
    Storage temperature
    0-35 °C (32-95 °F)

    ELECTRICAL

    AC Input
    110V ~ 5.9 A 50/60 Hz, 240V ~ 2.5 A 50/60 Hz
    Maximum power consumption
    400 W

    SOFTWARE

    Software bundle
    Z-SUITE
    Supported input file types
    .stl, obj, .dxf, .3mf, .ply
    Supported operating system
    Mac OS Mojave and newer versions / Windows 7 and newer versions

    IN THE BOX

    3D Printer, Side Covers, Z-SUITE, Starter Kit, Spool of Model Material, Spool of Support Material, 1x Perforated Plate, 1x Glass Plate, 2x Spool Holders, Material Box, USB Memory Stick

    DSS Station

    MECHANICAL

    Maximum working temperature
    75 °C (167 °F)
    Maximum rotational speed
    220 rpm

    ELECTRICAL

    AC input
    110V ~ 9 A 50/60 Hz, 240V ~ 4.2 A 50/60 Hz
    Maximum power consumption
    1000 W

    WEIGHT AND PHYSICAL DIMENSIONS

    External dimensions (W x D x H)
    235 x 238 x 295 mm (9.2 x 9.4 x 11.6 in)
    Internal dimensions
    188 x 188 x 199 mm (7.4 x 7.4 x 7.8 in)
    Working volume
    6 l (202.9 fl oz)
    Device weight
    8.4 kg (18.5 lb)

    IN THE BOX

    DSS Station, rising basket, rubber gloves, brush, drain pipe, power cable, quick start guide
