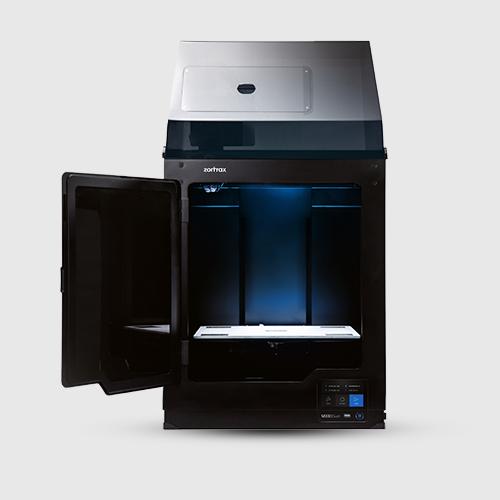

Zortrax M300 Dual & HEPA Cover

3D Printers

Zortrax M300 Dual & HEPA Cover

Professional large volume dual-extrusion 3D printer.

Lead time: up to 60 business days


Zortrax M300 Dual features:

    • LPD Plus dual-extrusion technology
    • 265 x 265 x 300 mm workspace
    • Wi-Fi, USB and Ethernet connectivity
    • Blackout response system
    • Built-in video streaming camera
    • Capacitive displacement sensor
    • Cooling system
    • Filament endstop mechanism
    • Single and dual extrusion modes
    • External materials support
    • Zortrax Speed Mode included
    • Compatible with metallic powder filaments


    Zortrax HEPA Cover features:

    • Maintains stable temperature inside the printing chamber to reduce warping of ABS-based materials
    • Carbon filter eliminates unpleasant smells
    • HEPA filter catches over 99% of 3D printing emissions, including ultra fine particles
    • Electric fan with regulated speed
    Lead time: 60 business days
    5,329.00 USD
    Choose plug type*:
    Quantity:
    Add to Wish List
    Shipping weight: 76.00kg

    Description

    Large-volume dual-extrusion
    Zortrax M300 Dual relies on the dual-extrusion LPD Plus technology to simultaneously print with base and water-soluble support filaments in a large build volume measuring 265x265x300 mm.

    Fail-safe 3D printing
    The M300 Dual can detect a power outage, jammed filament, and material running out. In each case it pauses the print and saves the exact position of the printing head. This way your work can be resumed from the same spot when the problem has been dealt with.

    Interchangeable build-platforms
    With a capacitive displacement sensor the M300 Dual can automatically calibrate to work with glass, perforated, or other types of build platforms. This way it’s possible to customize the printer for the project at hand.

    Worldwide warranty
    Thanks to the global warranty and a network of Zortrax partners running service centers around the world, all users are provided with extensive technical support and assistance for each Zortrax device.


    Zortrax Speed Mode
    Zortrax Speed Mode is a fully free feature available in the latest firmware update for M Series Plus and M300 Dual 3D printers, that allows speeding up your printing even up to 3 times.

    Specification

    3D PRINTER

    DEVICE

    Build volume
    265 x 265 x 300 mm (10.4 x 10.4 x 11.8 in)
    Nozzle diameter
    0.4 mm (0.016 in) - standard
    0.6 mm (0.024 in)
    Extruder
    Dual, printing with model and support material
    Extruder cooling system
    Two fans cooling the extruder
    Hotend
    Dual
    Platform
    Heated
    Material Endstop
    2 x mechanical
    Connectivity
    Wi-Fi
    USB
    Ethernet
    Operating system
    Android
    Processor
    Quad Core
    Touchscreen
    4” IPS 800 x 480
    Camera
    Yes

    PRINTING

    Technology
    LPD Plus (Layer Plastic Deposition Plus) – advanced technology depositing melted thermoplastics with dissolvable support structures
    Layer resolution
    150-300 microns (for 0.4 mm / 0.016 in nozzle)
    300-500 microns (for 0.6 mm / 0.024 in nozzle)
    Minimal wall thickness
    450 microns (for 0.4 mm / 0.016 in nozzle)
    Platform levelling
    Automatic or manual measurement of platform points’ height

    FILAMENTS

    Dedicated for single extrusion
    Z-ABS, Z-ASA Pro, Z-ESD, Z-FLEX, Z-GLASS, Z-HIPS, Z-NYLON, Z-PETG, Z-PLA, Z-PLA Pro, Z-ULTRAT, BASF Ultrafuse® PAHT CF15, BASF Ultrafuse® PP GF30, BASF Ultrafuse® PET CF15, 3DXTECH CarbonX PET-G+CF, Kimya PETG Carbon, Nanovia PETG CF, Nanovia PC-ABS V0
    Dedicated for dual extrusion
    Z-ABS, Z-ASA Pro, Z-ESD, Z-FLEX, Z-NYLON, Z-GLASS, Z-PETG, Z-PLA, Z-PLA Pro, Z-SUPPORT ATP, Z-SUPPORT Premium, Z-ULTRAT, BASF Ultrafuse® PAHT CF15, BASF Ultrafuse® BVOH, Nanovia PC-ABS V0, BASF Ultrafuse® 17-4 PH, BASF Ultrafuse® 316L, BASF Ultrafuse® Support Layer, BASF Ultrafuse® ABS.
    External materials
    Applicable
    Support
    Mechanically removed – printed with the same material as the model.
    Soluble – printed with a different material than the model
    Filament container
    Spool
    Filament diameter
    1.75 mm (0.069 in)

    TEMPERATURE

    Maximum printing temperature (extruder)
    310 °C (590 °F)
    Maximum platform temperature
    105 °C (221 °F)
    Ambient operation temperature
    20-30 °C (68-86 °F)
    Storage temperature
    0-35 °C (32-95 °F)

    ELECTRICAL

    AC Input
    110V ~ 5.9 A 50/60 Hz
    240V ~ 2.5 A 50/60 Hz
    Maximum power consumption
    400 W

    SOFTWARE

    Software bundle
    Z-SUITE
    Supported input file types
    .stl, obj, .dxf, .3mf, .ply
    Supported operating system
    Mac OS Catalina and newer versions
    Windows 10 and newer versions

    IN THE BOX

    3D Printer, Side Covers, Z-SUITE, Starter Kit, Spool of Model Material, Spool of Support Material, 1x Perforated Plate, 1x Glass Plate, 2x Spool Holders, Material Box, USB Memory Stick

    ADDITIONAL INFORMATION

    All information contained in this brochure and specification is subject to change without notice. Each delivered printer may have worked up to 90 hours during the quality control test prints.

    HEPA COVER

    FILTRATION

    Odor reduction filter
    Carbon
    Particle reduction filter
    HEPA
    Filtration efficiency
    99.5%

    ELECTRICAL

    AC input
    100 - 240 V ~ 0.7 A 50/60 Hz
    Power supply parameters
    12 V DC, 0.5 A (min)
    Maximum power consumption
    6 W

    WEIGHT AND PHYSICAL DIMENSIONS

    Without filtering module (W x D x H)
    496 x 483 x 280 mm (19.5 x 19.1 x 11 in)
    With filtering module (W x D x H)
    545 x 483 x 280 mm (21.5 x 19.1 x 11 in)
    Box dimensions
    565 x 550 x 335 mm (22.2 x 21.7 x 13.2 in)
    Device weight
    2.55 kg (5.6 lb)
    Total weight of the box
    4,8 kg (10.6 Ibs)

    IN THE BOX

    Device, Power Supply Unit, Filtering Module with HEPA and Carbon Filters
