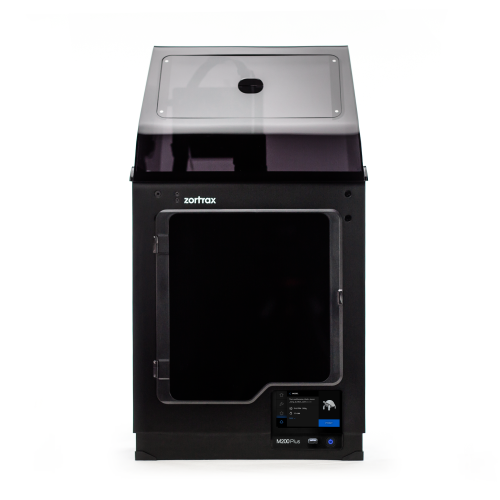

Zortrax M200 Plus & HEPA Cover
3D Printers
Zortrax M200 Plus & HEPA Cover
M200 Plus 3D Printer and Zortrax HEPA Cover.
A bundle of 3D printer and filtering device. Side Covers included.
Lead time: 30 days
Zortrax M200 Plus features
- Wi-Fi and Ethernet connectivity
- Material End Detection
- Upgraded extruder compatible with semi-flexible filaments
- Upgraded cooling system (double fan and extruder cooling)
- Optical endstops for the X and Y axes (previously mechanical)
- A buzzer (improves device's workflow and reminds users about an important action they need to take)
- Blackout Response System
Zortrax HEPA Cover features
- Maintains stable temperature inside the printing chamber to reduce warping of ABS-based materials
- Carbon filter eliminates unpleasant smells
- HEPA filter catches over 99% of 3D printing emissions, including ultra fine particles
- Electric fan with regulated speed
Availability: In Stock
3,008.00 USD
Shipping weight: 33.50kg
Description
Zortrax M200 Plus with Zortrax HEPA Cover
Zortrax HEPA Cover is a filtering device compatible with Zortrax M200 Plus wireless 3D printer. Based on the award winning Zortrax M200, Zortrax M200 Plus has been designed to work in large 3D printing farms. Zortrax HEPA Cover perfectly complements the M200 Plus in this application. Having the two working together, it's possible to maintain higher temperatures inside the printing chamber which significantly reduces shrinkage of ABS-based materials. HEPA filters catch over 99% of 3D printing emissions, including ultra fine particles, while carbon filters work to reduce unpleasant smells to ensure safe and smooth operation of a 3D printing farm.
Specification
3D printer features
Build volume
200 x 200 x 180 mm (7.9 x 7.9 x 7.1 in)
Material container
Spool
Material diameter
1,75 mm (0.069 in)
Nozzle diameter
0,4 mm (0.016 in)
Support
Mechanically removed - printed with the same material as the model
Extruder
Single (upgraded for more demanding materials)
Extruder cooling system
Radial fan cooling the extruder block
Hotend
Redesigned (v3), new geometry of the nozzle
Material endstop
Mechanical
Platform
Perforated, heated, equipped with Pogo pins
Connectivity
WI-FI, USB, Ethernet,
Operating system
Android
Processor
Quad Core
Touchscreen
4"
Camera
Yes, 640 x 480
Available materials
Z-ABS, Z-ABS 2, Z-ASA Pro, Z-ESD, Z-ESD v2, Z-FLEX, Z-GLASS, Z-HIPS, Z-NYLON, Z-PCABS, Z-PETG, Z-PLA, Z-PLA Pro, Z-ULTRAT
External materials
Applicable
In the box
3D Printer, Hotend V3, Side Covers, Z-SUITE, Starter Kit, Material Spool, Spool Holder, USB Memory Stick
Zortrax HEPA Cover parameters
HEPA cover dimensions****
426 x 357 x 230 mm (16.8 x 14 x 9 in)
Weight
1,95 kg (4.3 lbs)
Box dimensions
405 x 380 x 255 mm (15.9 x 15 x 10 in)
Total weight of the box
3,35 kg (7.4 Ibs)
Odors filter
Carbon filter
Particle filter
HEPA
HEPA filter ffficiency
Over 99%
AC input
100-240 V ~ 0.7 A 50/60 Hz
Power supply
12 V DC, 0.5 A (min)
Average energy consumption
6 W
Compatible with
Zortrax M200 / Zortrax M200 Plus
In the box
Zortrax HEPA Cover, filter module (electric fan with regulated speed, HEPA filter, carbon filter), power supply unit, front door, user's manual
Printing
Technology
LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform
Layer resolution
90-390 microns (for 0.4 mm/0.016 in nozzle)
Minimal optimal wall thickness
800 microns (for 0.4 mm/0.016 in nozzle)
Minimal wall thickness
450 microns (for 0.4 mm/0.016 in nozzle)
Dimensional accuracy
+/- 0.2%**
Angle accuracy
+/- 0.2%***
X/Y positioning accuracy
1.5 micron
Z-axis single step
1.25 micron
Platform levelling
Automatic measurement of platform points' height
Maximum platform temperature
105˚ C (221° F)
Maximum printing temperature (extruder)
290˚ C (554° F)
Ambient operation temperature
20 - 30˚ C (68 - 86° F)
Storage temperature
0 - 35˚ C (32 - 95˚ F)
AC input
110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5A 50/60 Hz
Power supply parameters
24 V DC @ 14 A, 500 W
Maximum power consumption
320 W
Weight and physical dimensions
3D printer (W x D x H)
350 x 360 x 505 mm (13.8 x 14.2 x 19.9 in)
With a spool
350 x 430 x 505 mm (13.8 x 16.9 x 19.9 in)
Shipping box
470 x 480 x 570 mm (18.5 x 18.9 x 22.4 in)
Shipping weight
26 kg (57.3 lb)
Printer weight*
16 kg (32 lb)
Software
Software bundle
Z-SUITE 2
Supported file types
.stl, .obj, .dxf, .3mf
Supported operating systems
Mac OS X / Windows 7 and newer versions
Additional information
Each delivered printer may have worked up to 50 hours during the quality control test prints.
* The weight includes: the device with the platform, power cable and spool holder installed. It does not include the material spool.
** It should be noted that the model’s dimensions strongly depend on the technical condition of the printer as well as the shape, form and size of a print, the material used and the printing process conditions. The Z-axis accuracy does not include a tolerance of +/- one layer. Bear in mind errors of measurement and measuring equipment.
*** measurements were taken with an angle of 90˚.
**** Dimensions of an assembled, ready to use device.
